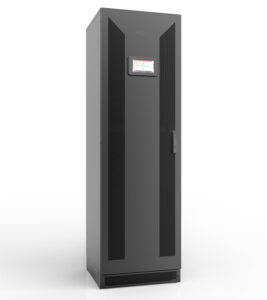

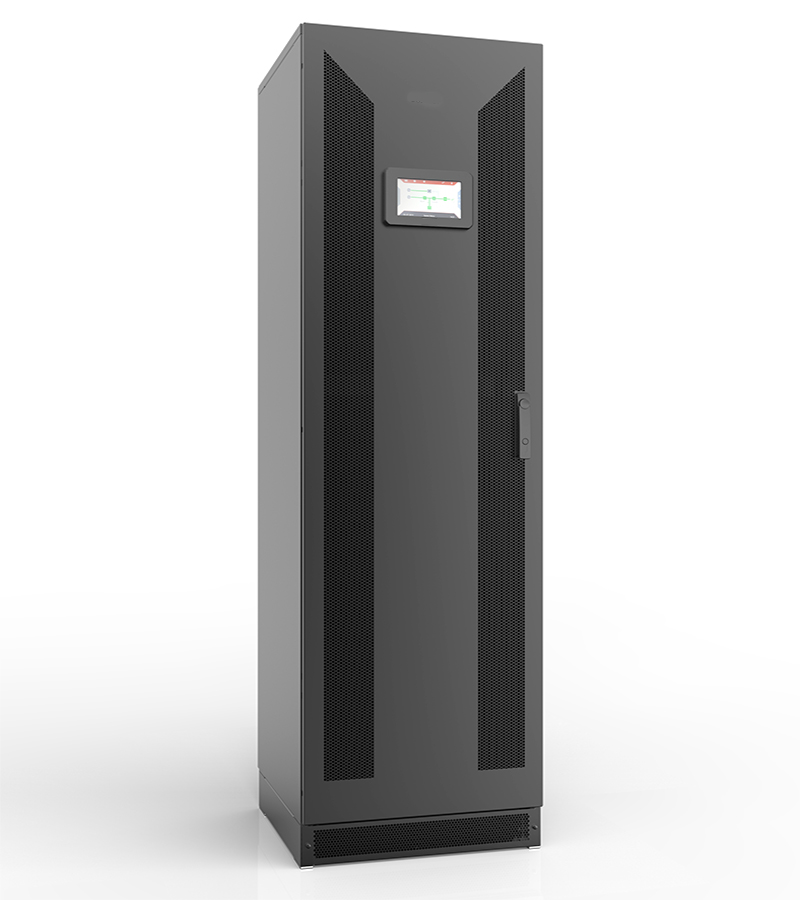

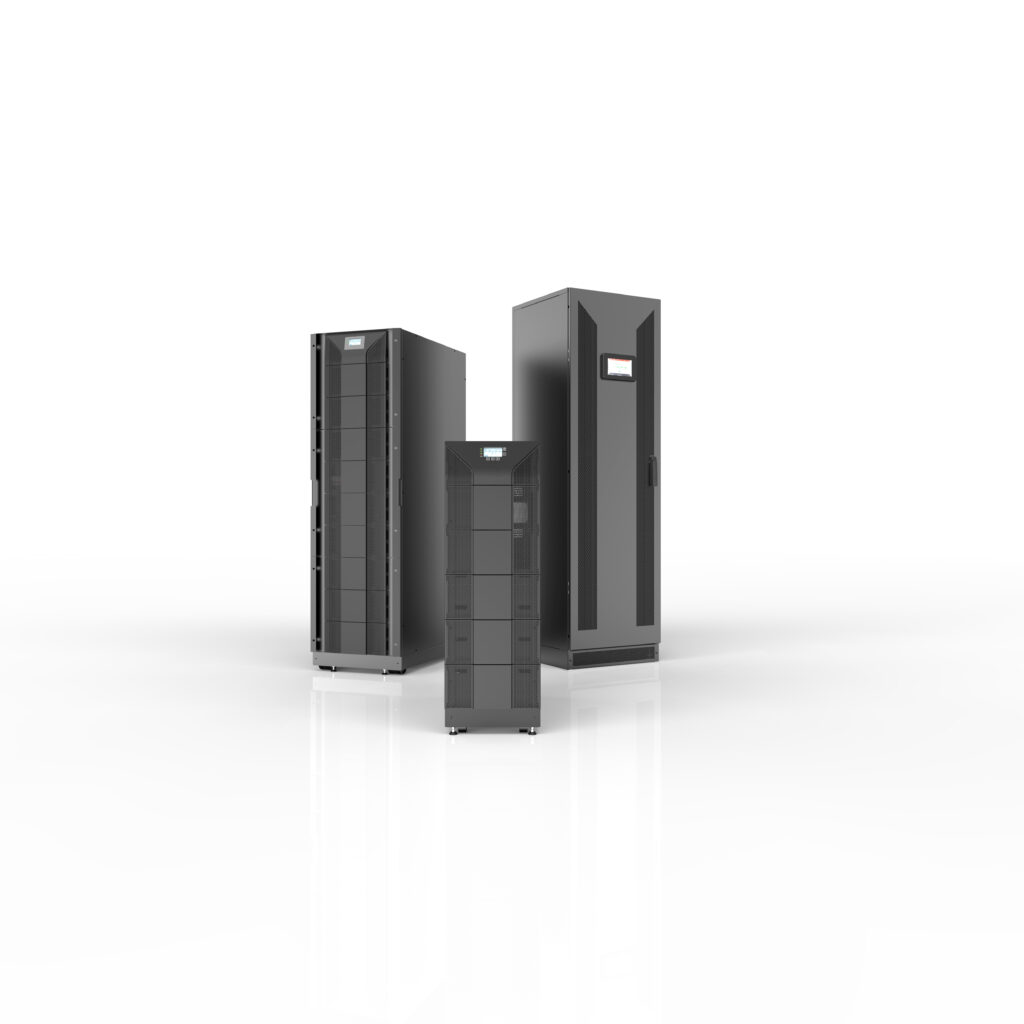

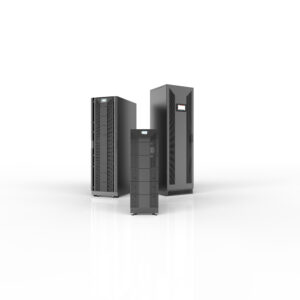

MILLI PT
Product Overview
From 10 to 250 kW, the MILLI PT is a Swiss made three phase in three phase out (10 to 250kW), online double-conversion Uninterruptible Power Supply. Configurable as a standalone UPS or as a parallel multi-cabinet system, MILLI PT provides the ultimate flexibility for future growth.
The MILLI PT offers scalability of up to 7.5 MW, delivering the best power protection for data centres, comms rooms, IT networks, manufacturing and any mission-critical applications demanding high availability.
Internal battery options, or matching battery cabinets, avoid complex installations and make MILLI PT the best solution for applications where power performance, available space, and flexibility are key parameters.
Key Features
Energy
Efficient
Efficient
Unlocked
software
software
2 year
warranty
warranty
Unique features
Integrated autonomies or matching battery cabinets. Flexible battery blocks (20 to 50) and compatible with VRLA, NiCad and Lithium batteries. Dual or single input, high overload rating, a high power density -up to 415kW/m² and unbeatable efficiency of 96.6%.
Design
The MILLI PT is designed for easy front access with swappable plug and play components. A user friendly display and real time monitoring allows close control or UPS parameters and proactive maintenance. A version that is EN50171 compliant is available for Centralised Power Safety Systems.
Expandability
The MILLI PT 33 is scalable from 10kW to 7.5MW
Product Specifications
MILLI PT 10000 IB and EB
Run time for load
5
kW
Max capacity used 50%
Capacity kW
10
Input
Voltage
380 / 400 / 415Vac
Voltage Range
For loads <100% (−25%, +20%) | <80% (−32.5%, +20%) | <60% (−35%, +20%)
Frequency range
40-70 Hz
Input current THDi*
THDi < 3% for linear load, THDi < 5% for non-linear load
Power factor
0,99
Output
Output voltage
380 / 400 / 415 Vac
Voltage regulation
± 1%
THDu
Sine wave (THDv < 2% for linear load; THDv < 3% for non-linear load)
Power factor
1
Frequency range
50/60 Hz
Frequency precision
± 0.1% (Battery Mode)
Overload capacity
Inverter < 120% continuous; ≥ 125% for 10 min; ≥ 150% for 1 min | Bypass 135% for long term; <1000% for 100ms
Battery
Voltage
360-600 Vdc (the number of batteries can be selected)
Charger power
20A
Voltage precision
± 1%
System
Efficiency
96,6%
Display
LCD
IP class
20
Interface
Std 1 x RS232, 2 x Dry In, 1 x Dry Out, 2 x Expansion slots, Bluetooth Option, 5 x Dry Output contacts, 4 x Dry Input contacts, SNMP Slot
Operation/storage temperature
0-40°C (No power derating) / Storage -40-70°C
Relative humidity
0%-95% (No condensing)
Noise
< 65dB
Dimensions
Weight kg
IB 105 (without batteries) : EB 80 (without batteries)
Width mm
IB 520 : EB 350
Depth mm
IB & EB 850
Height mm
IB 1725 : EB 1075
MILLI PT 20000 IB and EB
Run time for load
5
kW
Max capacity used 50%
Capacity kW
20
Input
Voltage
380 / 400 / 415Vac
Voltage Range
For loads <100% (−25%, +20%) | <80% (−32.5%, +20%) | <60% (−35%, +20%)
Frequency range
40-70 Hz
Input current THDi*
THDi < 3% for linear load, THDi < 5% for non-linear load
Power factor
0,99
Output
Output voltage
380 / 400 / 415 Vac
Voltage regulation
± 1%
THDu
Sine wave (THDv < 2% for linear load; THDv < 3% for non-linear load)
Power factor
1
Frequency range
50/60 Hz
Frequency precision
± 0.1% (Battery Mode)
Overload capacity
Inverter < 120% continuous; ≥ 125% for 10 min; ≥ 150% for 1 min | Bypass 135% for long term; <1000% for 100ms
Battery
Voltage
360-600 Vdc (the number of batteries can be selected)
Charger power
20A
Voltage precision
± 1%
System
Efficiency
96,6%
Display
LCD
IP class
20
Interface
Std 1 x RS232, 2 x Dry In, 1 x Dry Out, 2 x Expansion slots, Bluetooth Option, 5 x Dry Output contacts, 4 x Dry Input contacts, SNMP Slot
Operation/storage temperature
0-40°C (No power derating) / Storage -40-70°C
Relative humidity
0%-95% (No condensing)
Noise
< 65dB
Dimensions
Weight kg
IB 105 (without batteries) : EB 80 (without batteries)
Width mm
IB 520 : EB 350
Depth mm
IB & EB 850
Height mm
IB 1725 : EB 1075
MILLI PT 30000 IB and EB
Run time for load
5
kW
Max capacity used 50%
Capacity kW
30
Input
Voltage
380 / 400 / 415Vac
Voltage Range
For loads <100% (−25%, +20%) | <80% (−32.5%, +20%) | <60% (−35%, +20%)
Frequency range
40-70 Hz
Input current THDi*
THDi < 3% for linear load, THDi < 5% for non-linear load
Power factor
0,99
Output
Output voltage
380 / 400 / 415 Vac
Voltage regulation
± 1%
THDu
Sine wave (THDv < 2% for linear load; THDv < 3% for non-linear load)
Power factor
Unity
Frequency range
50/60 Hz
Frequency precision
± 0.1% (Battery Mode)
Overload capacity
Inverter < 120% continuous; ≥ 125% for 10 min; ≥ 150% for 1 min | Bypass 135% for long term; <1000% for 100ms
Battery
Voltage
360-600 Vdc (the number of batteries can be selected)
Charger power
40A
Voltage precision
± 1%
System
Efficiency
96,6%
Display
LCD
IP class
20
Interface
Std 1 x RS232, 2 x Dry In, 1 x Dry Out, 2 x Expansion slots, Bluetooth Option, 5 x Dry Output contacts, 4 x Dry Input contacts, SNMP Slot
Operation/storage temperature
0-40°C (No power derating) / Storage -40-70°C
Relative humidity
0%-95% (No condensing)
Noise
< 65dB
Dimensions
Weight kg
IB 105 (without batteries) : EB 80 (without batteries)
Width mm
IB 520 : EB 350
Depth mm
IB & EB 850
Height mm
IB 1725 : EB 1075
MILLI PT 40000 IB and EB
Run time for load
5
kW
Max capacity used 50%
Capacity kW
40
Input
Voltage
380 / 400 / 415Vac
Voltage Range
For loads <100% (−25%, +20%) | <80% (−32.5%, +20%) | <60% (−35%, +20%)
Frequency range
40-70 Hz
Input current THDi*
THDi < 3% for linear load, THDi < 5% for non-linear load
Power factor
0,99
Output
Output voltage
380 / 400 / 415 Vac
Voltage regulation
± 1%
THDu
Sine wave (THDv < 2% for linear load; THDv < 3% for non-linear load)
Power factor
Unity
Frequency range
50/60 Hz
Frequency precision
± 0.1% (Battery Mode)
Overload capacity
Inverter < 120% continuous; ≥ 125% for 10 min; ≥ 150% for 1 min | Bypass 135% for long term; <1000% for 100ms
Battery
Voltage
360-600 Vdc (the number of batteries can be selected)
Charger power
40A
Voltage precision
± 1%
System
Efficiency
96,6%
Display
LCD
IP class
20
Interface
Std 1 x RS232, 2 x Dry In, 1 x Dry Out, 2 x Expansion slots, Bluetooth Option, 5 x Dry Output contacts, 4 x Dry Input contacts, SNMP Slot
Operation/storage temperature
0-40°C (No power derating) / Storage -40-70°C
Relative humidity
0%-95% (No condensing)
Noise
< 65dB
Dimensions
Weight kg
IB 105 (without batteries) : EB 80 (without batteries)
Width mm
IB 520 : EB 350
Depth mm
IB & EB 850
Height mm
IB 1725 : EB 1075
MILLI PT 60000 IB and EB
Run time for load
5
kW
Max capacity used 50%
Capacity kW
60
Input
Voltage
380 / 400 / 415Vac
Voltage Range
For loads <100% (−25%, +20%) | <80% (−32.5%, +20%) | <60% (−35%, +20%)
Frequency range
40-70 Hz
Input current THDi*
THDi < 3% for linear load, THDi < 5% for non-linear load
Power factor
0,99
Output
Output voltage
380 / 400 / 415 Vac
Voltage regulation
± 1%
THDu
Sine wave (THDv < 2% for linear load; THDv < 3% for non-linear load)
Power factor
Unity
Frequency range
50/60 Hz
Frequency precision
± 0.1% (Battery Mode)
Overload capacity
Inverter < 120% continuous; ≥ 125% for 10 min; ≥ 150% for 1 min | Bypass 135% for long term; <1000% for 100ms
Battery
Voltage
360-600 Vdc (the number of batteries can be selected)
Charger power
40A
Voltage precision
± 1%
System
Efficiency
96,6%
Display
LCD
IP class
20
Interface
Std 1 x RS232, 2 x Dry In, 1 x Dry Out, 2 x Expansion slots, Bluetooth Option, 5 x Dry Output contacts, 4 x Dry Input contacts, SNMP Slot
Operation/storage temperature
0-40°C (No power derating) / Storage -40-70°C
Relative humidity
0%-95% (No condensing)
Noise
< 65dB
Dimensions
Weight kg
IB 105 (without batteries) : EB 80 (without batteries)
Width mm
IB 520 : EB 350
Depth mm
IB & EB 850
Height mm
IB 1725 : EB 1075
MILLI PT 80000 EB
Run time for load
5
kW
Max capacity used 50%
Capacity kW
80
Input
Voltage
380 / 400 / 415Vac
Voltage Range
For loads <100% (−25%, +20%) | <80% (−32.5%, +20%) | <60% (−35%, +20%)
Frequency range
40-70 Hz
Input current THDi*
THDi < 3% for linear load, THDi < 5% for non-linear load
Power factor
0,99
Output
Output voltage
380 / 400 / 415 Vac
Voltage regulation
± 1%
THDu
Sine wave (THDv < 2% for linear load; THDv < 3% for non-linear load)
Power factor
Unity
Frequency range
50/60 Hz
Frequency precision
± 0.1% (Battery Mode)
Overload capacity
Inverter < 120% continuous; ≥ 125% for 10 min; ≥ 150% for 1 min | Bypass 135% for long term; <1000% for 100ms
Battery
Voltage
240-600 Vdc (the number of batteries can be selected)
Charger power
64A
Voltage precision
± 1%
System
Efficiency
96,6%
Display
LCD
IP class
20
Interface
Std 1 x RS232, 2 x Dry In, 1 x Dry Out, 2 x Expansion slots, Bluetooth Option, 5 x Dry Output contacts, 4 x Dry Input contacts, SNMP Slot
Operation/storage temperature
0-40°C (No power derating) / Storage -40-70°C
Relative humidity
0%-95% (No condensing)
Noise
< 65dB
Dimensions
Weight kg
EB 200 (without batteries)
Width mm
EB 600
Depth mm
EB 604
Height mm
EB 1990
MILLI PT 100000 EB
Run time for load
5
kW
Max capacity used 50%
Capacity kW
100
Input
Voltage
380 / 400 / 415Vac
Voltage Range
For loads <100% (−25%, +20%) | <80% (−32.5%, +20%) | <60% (−35%, +20%)
Frequency range
40-70 Hz
Input current THDi*
THDi < 3% for linear load, THDi < 5% for non-linear load
Power factor
0,99
Output
Output voltage
380 / 400 / 415 Vac
Voltage regulation
± 1%
THDu
Sine wave (THDv < 2% for linear load; THDv < 3% for non-linear load)
Power factor
Unity
Frequency range
50/60 Hz
Frequency precision
± 0.1% (Battery Mode)
Overload capacity
Inverter < 120% continuous; ≥ 125% for 10 min; ≥ 150% for 1 min | Bypass 135% for long term; <1000% for 100ms
Battery
Voltage
240-600 Vdc (the number of batteries can be selected)
Charger power
80A
Voltage precision
± 1%
System
Efficiency
96,6%
Display
LCD
IP class
20
Interface
Std 1 x RS232, 2 x Dry In, 1 x Dry Out, 2 x Expansion slots, Bluetooth Option, 5 x Dry Output contacts, 4 x Dry Input contacts, SNMP Slot
Operation/storage temperature
0-40°C (No power derating) / Storage -40-70°C
Relative humidity
0%-95% (No condensing)
Noise
< 65dB
Dimensions
Weight kg
EB 240 (without batteries)
Width mm
EB 600
Depth mm
EB 604
Height mm
EB 1990
MILLI PT 120000 EB
Run time for load
5
kW
Max capacity used 50%
Capacity kW
120
Input
Voltage
380 / 400 / 415Vac
Voltage Range
For loads <100% (−25%, +20%) | <80% (−32.5%, +20%) | <60% (−35%, +20%)
Frequency range
40-70 Hz
Input current THDi*
THDi < 3% for linear load, THDi < 5% for non-linear load
Power factor
0,99
Output
Output voltage
380 / 400 / 415 Vac
Voltage regulation
± 1%
THDu
Sine wave (THDv < 2% for linear load; THDv < 3% for non-linear load)
Power factor
Unity
Frequency range
50/60 Hz
Frequency precision
± 0.1% (Battery Mode)
Overload capacity
Inverter < 120% continuous; ≥ 125% for 10 min; ≥ 150% for 1 min | Bypass 135% for long term; <1000% for 100ms
Battery
Voltage
240-600 Vdc (the number of batteries can be selected)
Charger power
80A
Voltage precision
± 1%
System
Efficiency
96,6%
Display
LCD
IP class
20
Interface
Std 1 x RS232, 2 x Dry In, 1 x Dry Out, 2 x Expansion slots, Bluetooth Option, 5 x Dry Output contacts, 4 x Dry Input contacts, SNMP Slot
Operation/storage temperature
0-40°C (No power derating) / Storage -40-70°C
Relative humidity
0%-95% (No condensing)
Noise
< 65dB
Dimensions
Weight kg
EB 280 (without batteries)
Width mm
EB 600
Depth mm
EB 604
Height mm
EB 1990
MILLI PT 160000 EB
Run time for load
5
kW
Max capacity used 50%
Capacity kW
160
Input
Voltage
380 / 400 / 415Vac
Voltage Range
For loads <100% (−25%, +20%) | <80% (−32.5%, +20%) | <60% (−35%, +20%)
Frequency range
40-70 Hz
Input current THDi*
THDi < 3% for linear load, THDi < 5% for non-linear load
Power factor
0,99
Output
Output voltage
380 / 400 / 415 Vac
Voltage regulation
± 1%
THDu
Sine wave (THDv < 2% for linear load; THDv < 3% for non-linear load)
Power factor
Unity
Frequency range
50/60 Hz
Frequency precision
± 0.1% (Battery Mode)
Overload capacity
Inverter < 120% continuous; ≥ 125% for 10 min; ≥ 150% for 1 min | Bypass 135% for long term; <1000% for 100ms
Battery
Voltage
240-600 Vdc (the number of batteries can be selected)
Charger power
120A
Voltage precision
± 1%
System
Efficiency
96,6%
Display
LCD
IP class
20
Interface
Std 1 x RS232, 2 x Dry In, 1 x Dry Out, 2 x Expansion slots, Bluetooth Option, 5 x Dry Output contacts, 4 x Dry Input contacts, SNMP Slot
Operation/storage temperature
0-40°C (No power derating) / Storage -40-70°C
Relative humidity
0%-95% (No condensing)
Noise
< 65dB
Dimensions
Weight kg
EB 400 (without batteries)
Width mm
EB 900
Depth mm
EB 682
Height mm
EB 1990
MILLI PT 200000 EB
Run time for load
5
kW
Max capacity used 50%
Capacity kW
200
Input
Voltage
380 / 400 / 415Vac
Voltage Range
For loads <100% (−25%, +20%) | <80% (−32.5%, +20%) | <60% (−35%, +20%)
Frequency range
40-70 Hz
Input current THDi*
THDi < 3% for linear load, THDi < 5% for non-linear load
Power factor
0,99
Output
Output voltage
380 / 400 / 415 Vac
Voltage regulation
± 1%
THDu
Sine wave (THDv < 2% for linear load; THDv < 3% for non-linear load)
Power factor
Unity
Frequency range
50/60 Hz
Frequency precision
± 0.1% (Battery Mode)
Overload capacity
Inverter < 120% continuous; ≥ 125% for 10 min; ≥ 150% for 1 min | Bypass 135% for long term; <1000% for 100ms
Battery
Voltage
240-600 Vdc (the number of batteries can be selected)
Charger power
160A
Voltage precision
± 1%
System
Efficiency
96,6%
Display
LCD
IP class
20
Interface
Std 1 x RS232, 2 x Dry In, 1 x Dry Out, 2 x Expansion slots, Bluetooth Option, 5 x Dry Output contacts, 4 x Dry Input contacts, SNMP Slot
Operation/storage temperature
0-40°C (No power derating) / Storage -40-70°C
Relative humidity
0%-95% (No condensing)
Noise
< 65dB
Dimensions
Weight kg
EB 450 (without batteries)
Width mm
EB 900
Depth mm
EB 682
Height mm
EB 1990
MILLI PT 250000 EB
Run time for load
5
kW
Max capacity used 50%
Capacity kW
250
Input
Voltage
380 / 400 / 415Vac
Voltage Range
For loads <100% (−25%, +20%) | <80% (−32.5%, +20%) | <60% (−35%, +20%)
Frequency range
40-70 Hz
Input current THDi*
THDi < 3% for linear load, THDi < 5% for non-linear load
Power factor
0,99
Output
Output voltage
380 / 400 / 415 Vac
Voltage regulation
± 1%
THDu
Sine wave (THDv < 2% for linear load; THDv < 3% for non-linear load)
Power factor
Unity
Frequency range
50/60 Hz
Frequency precision
± 0.1% (Battery Mode)
Overload capacity
Inverter < 120% continuous; ≥ 125% for 10 min; ≥ 150% for 1 min | Bypass 135% for long term; <1000% for 100ms
Battery
Voltage
240-600 Vdc (the number of batteries can be selected)
Charger power
160A
Voltage precision
± 1%
System
Efficiency
96,6%
Display
LCD
IP class
20
Interface
Std 1 x RS232, 2 x Dry In, 1 x Dry Out, 2 x Expansion slots, Bluetooth Option, 5 x Dry Output contacts, 4 x Dry Input contacts, SNMP Slot
Operation/storage temperature
0-40°C (No power derating) / Storage -40-70°C
Relative humidity
0%-95% (No condensing)
Noise
< 65dB
Dimensions
Weight kg
EB 480 (without batteries)
Width mm
EB 900
Depth mm
EB 682
Height mm
EB 1990
