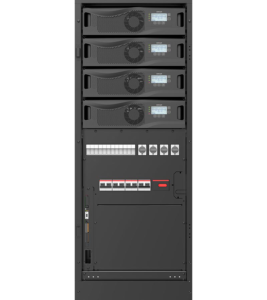

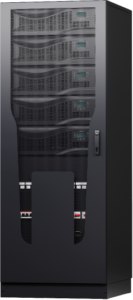

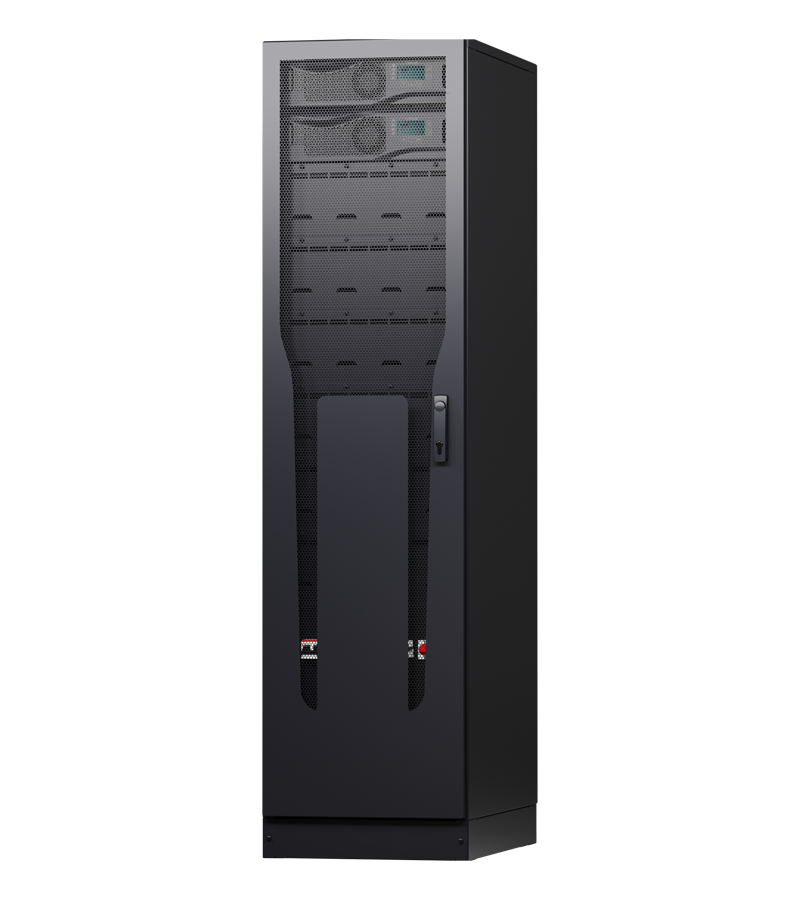

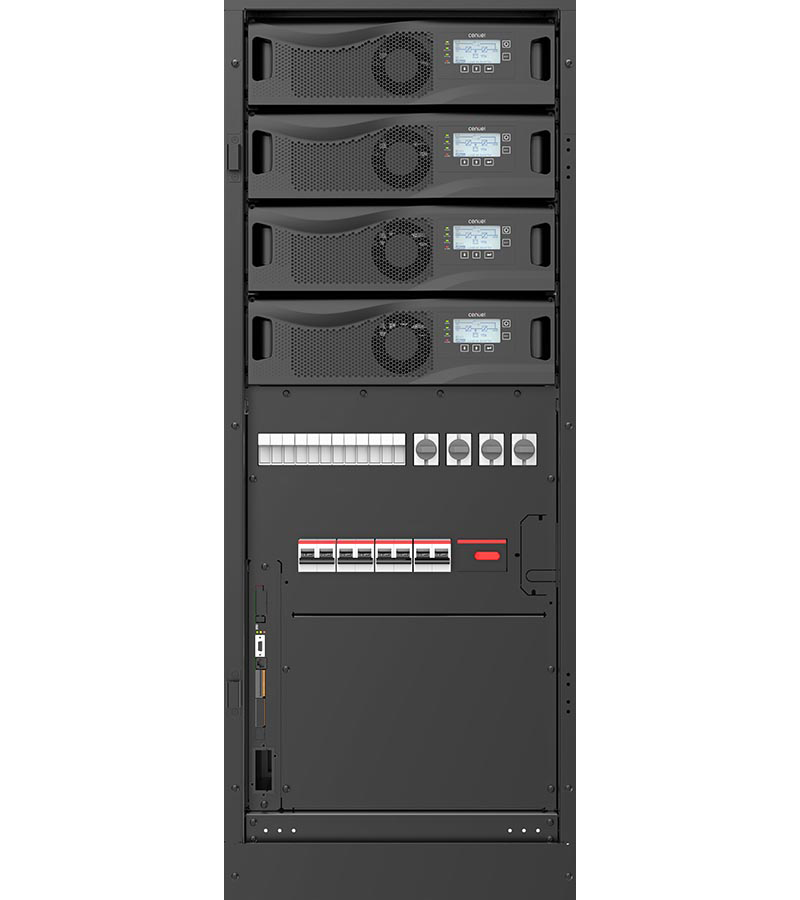

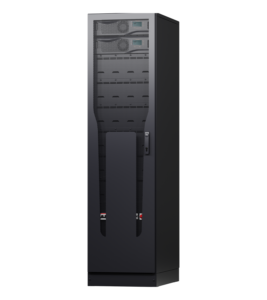

MEGA M-High Availability Solution

Product Overview

A fully modular UPS system, with the highest power availability, designed predominantly for the Data Centre market. Equipped with DARA™ (Distributed Active-Redundant Architecture) technology, the MEGA M reduces the potential of human error and downtime which eases functionality in data centres

Enquire now

Key Features

Energy
Efficient

Unlocked
software

2 year
warranty

Unique feature

The MEGA M has the highest availability of any UPS in the market with 9 nines. Unity power factor and DARA™ technology also reduces the potential of human error.

Design

Metartec have designed the MEGA M as a high density fully modular UPS system with an optimised footprint, increased power availability and hot swappable UPS modules

Expandability

The MEGA M is scalable from 10kW to 5.4MW

Documentation

MEGA M Datasheet

Product Specifications

MEGA-M50

Download datasheet

Run time for load

Max capacity used 50%

Capacity kW

Input

Voltage

380V/400V/415V (Line-Line)

Voltage Range

220V/230V /240V (line to neutral)

Frequency range

50/60Hz

Input current THDi*

THDi <3% for linear load, THDi <5% for nonlinear load

Power factor

0.99

Output

Output voltage

380V/400V/415V (line to line)

Voltage regulation

1.00%

THDu

<2%(linear load), <3%(nonlinear load)

Power factor

Unity

Frequency range

50/60Hz

Frequency precision

0.1% Battery Mode

Overload capacity

110% for 60minutes; 125% for 10 minutes;150% for 1 minute; >150% for 200ms

Battery

Voltage

±180VDC to ±300VDC

Charger power

10% of Active Power

Voltage precision

System

Efficiency

Double Conversion 97%

Display

Colour LCD Touch Screen+ LED

IP class

IP20

Interface

Standard: RS232, RS485, Dry contactor, SNMP card, EPO and Bluetooth

Operation/storage temperature

0-40^oC/ -40^oC-70^oC

Relative humidity

0-95% (non-condensing)

Noise

65 dB

Dimensions

Weight kg

302

Width mm

510

Depth mm

795

Height mm

1980

MEGA-M100

Download datasheet

Run time for load

Max capacity used 50%

Capacity kW

100

Input

Voltage

380V/400V/415V (Line-Line)

Voltage Range

220V/230V /240V (line to neutral)

Frequency range

50/60Hz

Input current THDi*

THDi <3% for linear load, THDi <5% for nonlinear load

Power factor

0.99

Output

Output voltage

380V/400V/415V (line to line)

Voltage regulation

1.00%

THDu

<2%(linear load), <3%(nonlinear load)

Power factor

Unity

Frequency range

50/60Hz

Frequency precision

0.1% Battery Mode

Overload capacity

110% for 60minutes; 125% for 10 minutes;150% for 1 minute; >150% for 200ms

Battery

Voltage

±180VDC to ±300VDC

Charger power

10% of Active Power

Voltage precision

System

Efficiency

Double Conversion 97%

Display

Colour LCD Touch Screen+ LED

IP class

IP20

Interface

Standard: RS232, RS485, Dry contactor, SNMP card, EPO and Bluetooth

Operation/storage temperature

0-40^oC/ -40^oC-70^oC

Relative humidity

0-95% (non-condensing)

Noise

65 dB

Dimensions

Weight kg

374

Width mm

510

Depth mm

795

Height mm

1980

MEGA-M150

Download datasheet

Run time for load

Max capacity used 50%

Capacity kW

150

Input

Voltage

380V/400V/415V (Line-Line)

Voltage Range

220V/230V /240V (line to neutral)

Frequency range

50/60Hz

Input current THDi*

THDi <3% for linear load, THDi <5% for nonlinear load

Power factor

Unity

Output

Output voltage

380V/400V/415V (line to line)

Voltage regulation

1.00%

THDu

<2%(linear load), <3%(nonlinear load)

Power factor

Unity

Frequency range

50/60Hz

Frequency precision

0.1% Battery Mode

Overload capacity

110% for 60 minutes; 125% for 10 minutes;150% for 1 minute; >150% for 200ms

Battery

Voltage

±180VDC to ±300VDC

Charger power

10% of Active Power

Voltage precision

System

Efficiency

Double Conversion 97%

Display

Colour LCD Touch Screen+ LED

IP class

IP20

Interface

Standard: RS232, RS485, Dry contactor, SNMP card, EPO and Bluetooth

Operation/storage temperature

0-40^oC/ -40^oC-70^oC

Relative humidity

0-95% (non-condensing)

Noise

65 dB

Dimensions

Weight kg

405

Width mm

510

Depth mm

795

Height mm

1980

MEGA-M250

Download datasheet

Run time for load

Max capacity used 50%

Capacity kW

250

Input

Voltage

380V/400V/415V (Line-Line)

Voltage Range

220V/230V /240V (line to neutral)

Frequency range

50/60Hz

Input current THDi*

THDi <3% for linear load, THDi <5% for nonlinear load

Power factor

0.99

Output

Output voltage

380V/400V/415V (line to line)

Voltage regulation

1.00%

THDu

<2%(linear load), <3%(nonlinear load)

Power factor

Unity

Frequency range

50/60Hz

Frequency precision

0.1% Battery Mode

Overload capacity

110% for 60 minutes; 125% for 10 minutes;150% for 1 minute; >150% for 200ms

Battery

Voltage

±180VDC to ±300VDC

Charger power

10% of Active Power

Voltage precision

System

Efficiency

Double Conversion 97%

Display

Colour LCD Touch Screen+ LED

IP class

IP20

Interface

Standard: RS232, RS485, Dry contactor, SNMP card, EPO and Bluetooth

Operation/storage temperature

0-40^oC/ -40^oC-70^oC

Relative humidity

0-95% (non-condensing)

Noise

65 dB

Dimensions

Weight kg

440

Width mm

740

Depth mm

795

Height mm

1980

MEGA-M300

Download datasheet

Run time for load

Max capacity used 50%

Capacity kW

300

Input

Voltage

380V/400V/415V (Line-Line)

Voltage Range

220V/230V /240V (line to neutral)

Frequency range

50/60Hz

Input current THDi*

THDi <3% for linear load, THDi <5% for nonlinear load

Power factor

0.99

Output

Output voltage

380V/400V/415V (line to line)

Voltage regulation

1.00%

THDu

<2%(linear load), <3%(nonlinear load)

Power factor

Unity

Frequency range

50/60Hz

Frequency precision

0.1% Battery Mode

Overload capacity

110% for 60 minutes; 125% for 10 minutes;150% for 1 minute; >150% for 200ms

Battery

Voltage

±180VDC to ±300VDC

Charger power

10% of Active Power

Voltage precision

System

Efficiency

Double Conversion 97%

Display

Colour LCD Touch Screen+ LED

IP class

IP20

Interface

Standard: RS232, RS485, Dry contactor, SNMP card, EPO and Bluetooth

Operation/storage temperature

0-40^oC/ -40^oC-70^oC

Relative humidity

0-95% (non-condensing)

Noise

65 dB

Dimensions

Weight kg

480

Width mm

740

Depth mm

820

Height mm

1980

MEGA-M600

Download datasheet

Run time for load

Max capacity used 50%

Capacity kW

600

Input

Voltage

380V/400V/415V (Line-Line)

Voltage Range

220V/230V /240V (line to neutral)

Frequency range

50/60Hz

Input current THDi*

THDi <3% for linear load, THDi <5% for nonlinear load

Power factor

0.99

Output

Output voltage

380V/400V/415V (line to line)

Voltage regulation

1.00%

THDu

<2%(linear load), <3%(nonlinear load)

Power factor

Unity

Frequency range

50/60Hz

Frequency precision

0.1% Battery Mode

Overload capacity

110% for 60 minutes; 125% for 10 minutes;150% for 1 minute; >150% for 200ms

Battery

Voltage

±180VDC to ±300VDC

Charger power

10% of Active Power

Voltage precision

System

Efficiency

Double Conversion 97%

Display

Colour LCD Touch Screen+ LED

IP class

IP20

Interface

Standard: RS232, RS485, Dry contactor, SNMP card, EPO and Bluetooth

Operation/storage temperature

0-40^oC/ -40^oC-70^oC

Relative humidity

0-95% (non-condensing)

Noise

65 dB

Dimensions

Weight kg

960

Width mm

1480

Depth mm

820

Height mm

1980

MEGA-M900

Download datasheet

Run time for load

Max capacity used 50%

Capacity kW

900

Input

Voltage

380V/400V/415V (Line-Line)

Voltage Range

220V/230V /240V (line to neutral)

Frequency range

50/60Hz

Input current THDi*

THDi <3% for linear load, THDi <5% for nonlinear load

Power factor

0.99

Output

Output voltage

380V/400V/415V (line to line)

Voltage regulation

1.00%

THDu

<2%(linear load), <3%(nonlinear load)

Power factor

Unity

Frequency range

50/60Hz

Frequency precision

0.1% Battery Mode

Overload capacity

110% for 60 minutes; 125% for 10 minutes;150% for 1 minute; >150% for 200ms

Battery

Voltage

±180VDC to ±300VDC

Charger power

10% of Active Power

Voltage precision

System

Efficiency

Double Conversion 97%

Display

Colour LCD Touch Screen+ LED

IP class

IP20

Interface

Standard: RS232, RS485, Dry contactor, SNMP card, EPO and Bluetooth

Operation/storage temperature

0-40^oC/ -40^oC-70^oC

Relative humidity

0-95% (non-condensing)

Noise

65 dB

Dimensions

Weight kg

1440

Width mm

2200

Depth mm

820

Height mm

1980
